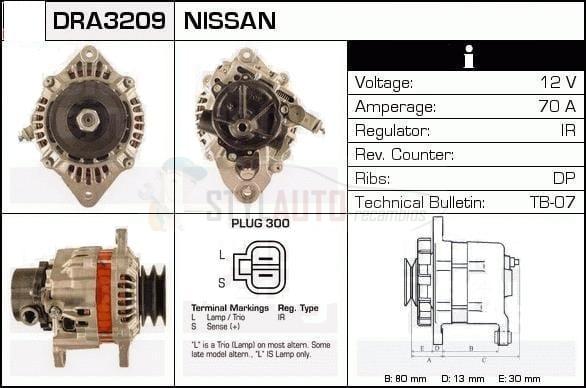

Alternador Nissan, 0986040561, 23100-22J10. A3T03099, JA677IR

▪ Artículo complementario/Información complementaria : con regulador incorporado
▪ Corriente de carga alternador [A] : 70
▪ ID del modelo de conector : PLUG300
▪ Poleas : con polea doble
▪ Tensión [V] : 12

Ind: #10 Regulator No: 50RD447 Relay Terminal Size: 1/4 Maximum Rotation Speed: 6500 Field Circuit: B Regulator No: 50VR403 Output Terminal Size: 1/4 Cut In Speed: 750 Ground: negative A (mm): 55 (From H3 ctr) C (mm): 122 (From H3 ctr) D (mm): 59 (From H2 ctr to H3 ctr) Overvee: 58 Plug Info 1: 2 x Lucar 2.7 x 0.8 Plug info B+: M8 Bracket: H1: slot 10 x 12.8 Bracket: H2 : d8.5 other side d8 Bracket: H3 : d11.2 Overvee: 49.5 Plug Info 1: 1 x Lucar 2.2 x 0.8 Plug info B+: M8 Pully diameter: 57.2 Bracket: H1 & H3 = d9 Bracket: H2= slot 8 x 9.5 and the other side:d9.2 Bracket: H4 = d8 and the other side : d9 Fan: IF A (mm): 29.5 Bracket: 1 x d9 on 85 PCR Bracket: 2 x d10,5 on 90 PCR in line Fan: IF Terminal: 2 x Lucar 6,3 x 0,8 A (mm): 43 C (mm): 159 E (mm): 30 Overbelt: 88 Plug info B+: M6
